Single Input Masthead Amplifier

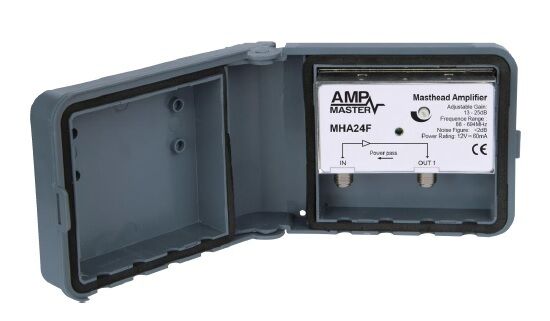

Ampmaster MHA24F single input mast ampliﬁer oﬀers an unparalleled combination of low noise, outstanding input ﬁltering and adjustable gain control. A green LED power indicator shows when power is connected. Fully screened and ﬁtted with industry standard F connectors, the ampliﬁer is enclosed in a moulded ABS weather proof housing suitable for outdoor application.
The captive amp module can be tilted up to 45˚ within the weatherproof housing, simplifying Input & Output connections. A sturdy steel mast clamp enables quick and secure mast amp. ﬁxing. Built in ﬁltering attenuates LTE 700 4G phone signals above 694MHzand radio communications signals below 88MHz by some 40dB
- Industry-leading noise performance <2dB typical
- Sturdy metal mast clamp
- LED power indicator, a useful aid for fault ﬁnding
- Input ﬁltered to minimise the possibility of interference
- Suitable for Outdoor use, close to the antenna
Power Supply (Not Included)
As MHA24F is line powered an independent 12VDC power supply > 60mA with Injector is required. We recommend PS12DCP 300mA regulated SMPS power supply unit, with short circuit protection and a green fault indication LED. Alternative 12V power supplies, including ampliﬁers with line powering options can be used, providing the additional 60mA required to operate your MHA24F is available.
