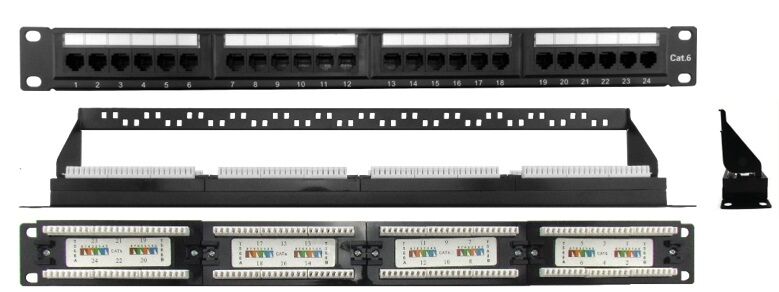

Cat 6 24 Ports Panel with Back Bar

FEATURES

Electrical:

  1. Voltage Rating               :125VAC RMS
  2. Current Rating              :1.5 AMP
  3. Contact Resistance       :100 MILLIOHMS MAX
  4. Insulation Resistance    :1000MEGOHMS MIN @ 500 VDC
  5. DIELECTRIC STRENGTH : 750 VAC RMS 60Hz, 1MIN
  6. Conform to ANSI/TIA/EIA-568 B.2-1
  7. Mates with modular plug Conforming to FCC Part 68

Environmental:

  1. Storage                          :-40° TO +85°
  2. Operation                      :0° TO 70°

Mechanical:

  1. Housing Material          :PBT+15%GF UL94V-0
  2. Panel Frame                 :Carbon Steel, Powder Coating in Black Color
  3. Contact Material            :PC UL94V-0 Contact: Phosphor Bronze with Nickel
  4. RJ45 Jack Life                 : 750 Times MIN
  5. IDC Life                           :200 Times MIN
  6. WIRE                              :AWG 24~26
  7. Terminal Contact TYPE :KRONE
SKU PP246-KBLK
Shipping Weight 0.7670kg
Shipping Width 0.500m
Shipping Height 0.200m
Shipping Length 0.195m
Shipping Cubic 0.019500000m3
