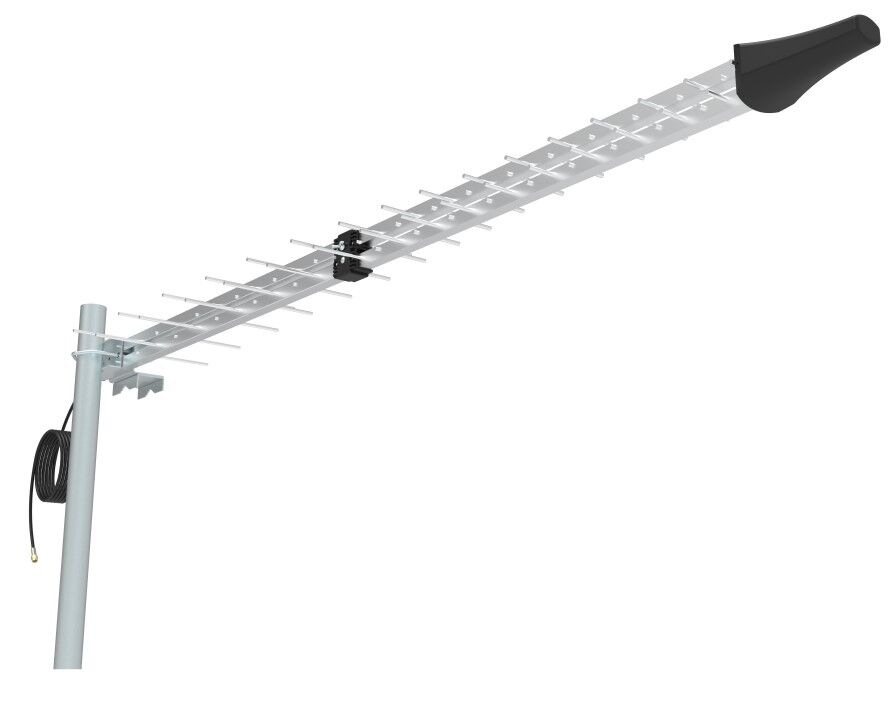

GDW-BV1109

4G-5G LPDA Antenna 698-5000 MHz

Technical Data:

  • Frequency Range: 698-960/1710-2700/3300-3800/4800-5000
  • VSWR: <3
  • Imput Impedance: 50Ω
  • Gain: 12-15dB
  • Polarization: Vertical or Horizontal
  • Horizontal Beam Width (3dB): 50+8/45+8/35+5/28+
  • Vertical Beam Width (3dB):  40+5/35+5/35+3/20+
  • Max.Power: 100w
  • Connector Type: SMA-Male
  • Lightning Protection: DC Ground
  • Cable: 0.3m

Mechanical Specifications:

  • Dimension: 1240x220x55mm
  • Weight: 1.03kg
  • Radome Material: Aluminium
  • Working Temperature: -40~+60°
SKU GDW-BV1109
Shipping Weight 1.2000kg
Shipping Width 0.550m
Shipping Height 0.220m
Shipping Length 1.050m
Shipping Cubic 0.127050000m3
