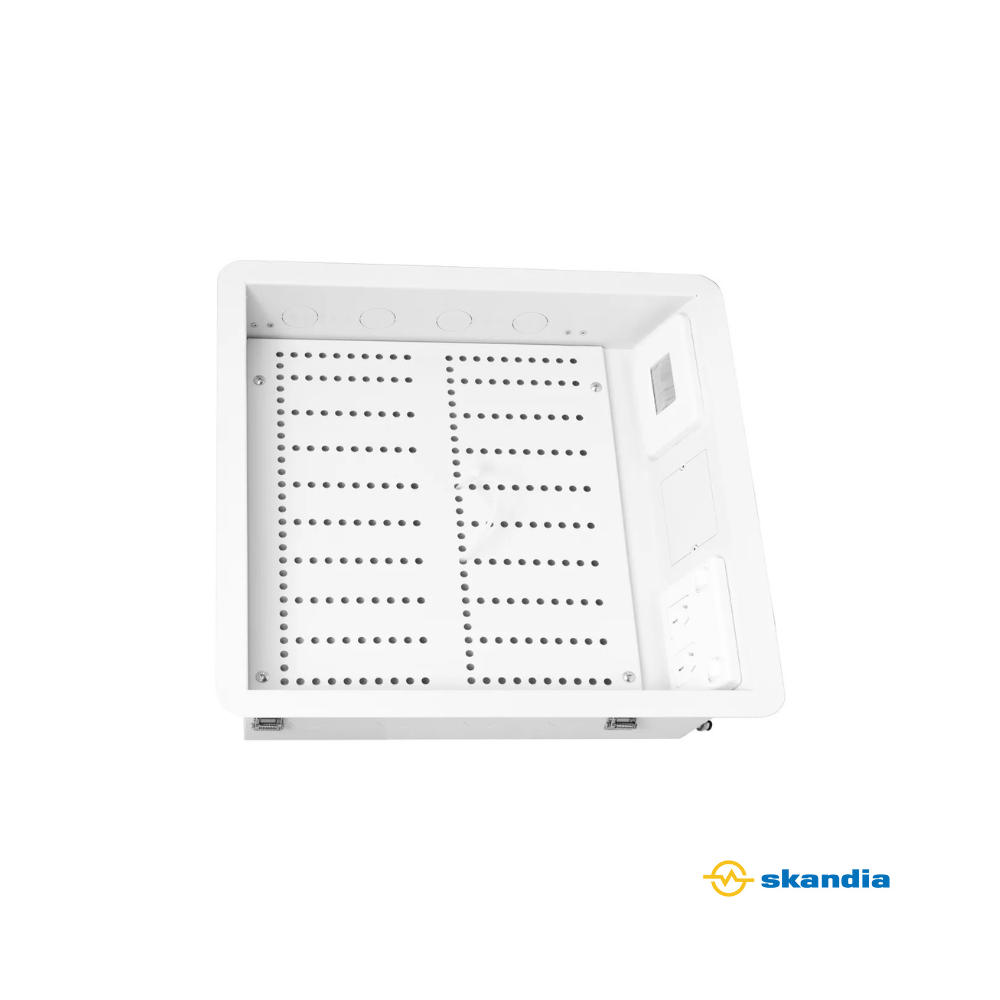

White Recessed AV Wall Box - Large
White Recessed AV Wall Box - Large
The Recessed AV Wall Boxes are designed to be recessed into the wall cavity behind a wall mounted TV.
The flush design of the Recessed AV Wall Boxes allows for a cutout to fit neatly between wall studs. the unit is inserted and held in place to the gyprock with 4 strong spring clips. Complete with a double PowerPoint and Shroud, Brush wallplate, hardware mounting brackets and plastic rivets. The Recessed AV Wall Boxes are ready for use straight out of the carton. Constructed with Mild Steel and finished in white hamertone powder coat the Recessed AV Wall Boxes blend nicely into any modern decor.
Two sizes available, WPRWBS Small Recessed AV Wall Box and WPRWBL Large Recessed AV Wall Box.
Available in two standard sizes – Large enough to house the Samsung One Connect Box
| Technical | Part Number WPRWBS | Part Number WPRWBL |
| External Size | 450MM W X 320MM H X 85MM D | 450MM W X 450MM H X 85MM D |
| Cut-Out Size | 410 MM W X 290MM H | 410MM W X 420MM H |
| Mounting Area Size | 330MM W X 260WW H X 75MM D | 330MM W X 390MM H 75MM D |
| Latches | 4 X SPRING CLIPS | 4 X SPRING CLIPS |
| Colour | WHITE HAMMERTONE POWDER COAT | WHITE HAMMERTONE POWDER COAT |
| Supplied Components | 1 X Double Powerpoint
1 X Brush Plate 1 X Hardware mounting brackets |
1 X Double Powerpoint
1 X Brush Plate 2 X Hardware mounting brackets |
| Weight | 3Kg | 4Kg |
| Material | 1mm Mild Steel | 1mm Mild Steel |
