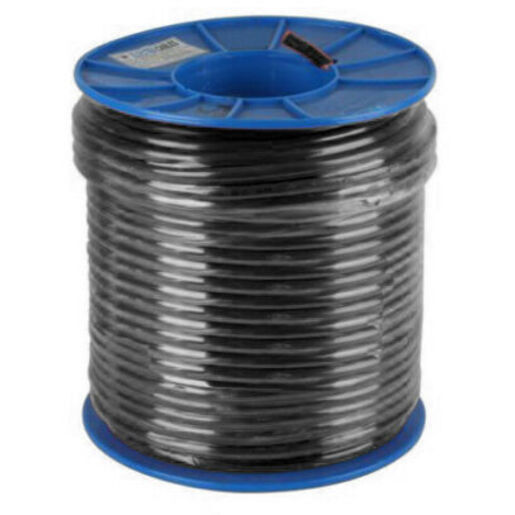

1.5MM 1 Pair 7/0.50 Instrumentation Stranded 100mtr reel - Screened/Shielded black/white black PVC
$128.70
Instrumentation Cable Overall Screened 1.5MM
Used for internal and external inter-connections of electronic apparatus such as computer, intercoms, telemetering, signalling and alarm systems.
- Insulation: PVC V90HT
- Core Colours: White & Black numbered cores
- Sheath: PVC 5V-90
- Sheath Colour: Black
- No. of pairs: 1 (two core)
- Stranding No./mm: 7/0.50
- Nom. Area mm²: 1.5MM
- Nom O/D.mm: 6.4
- Insulation Thickness mm: 0.5
- Sheath Thickness: 0.80
- AS1125 (Conductor), AS/NZS 3803 (PVC)
- Voltage: There cables are run with a 240V radial thickness sheath and must not be connected to mains power supplies.
