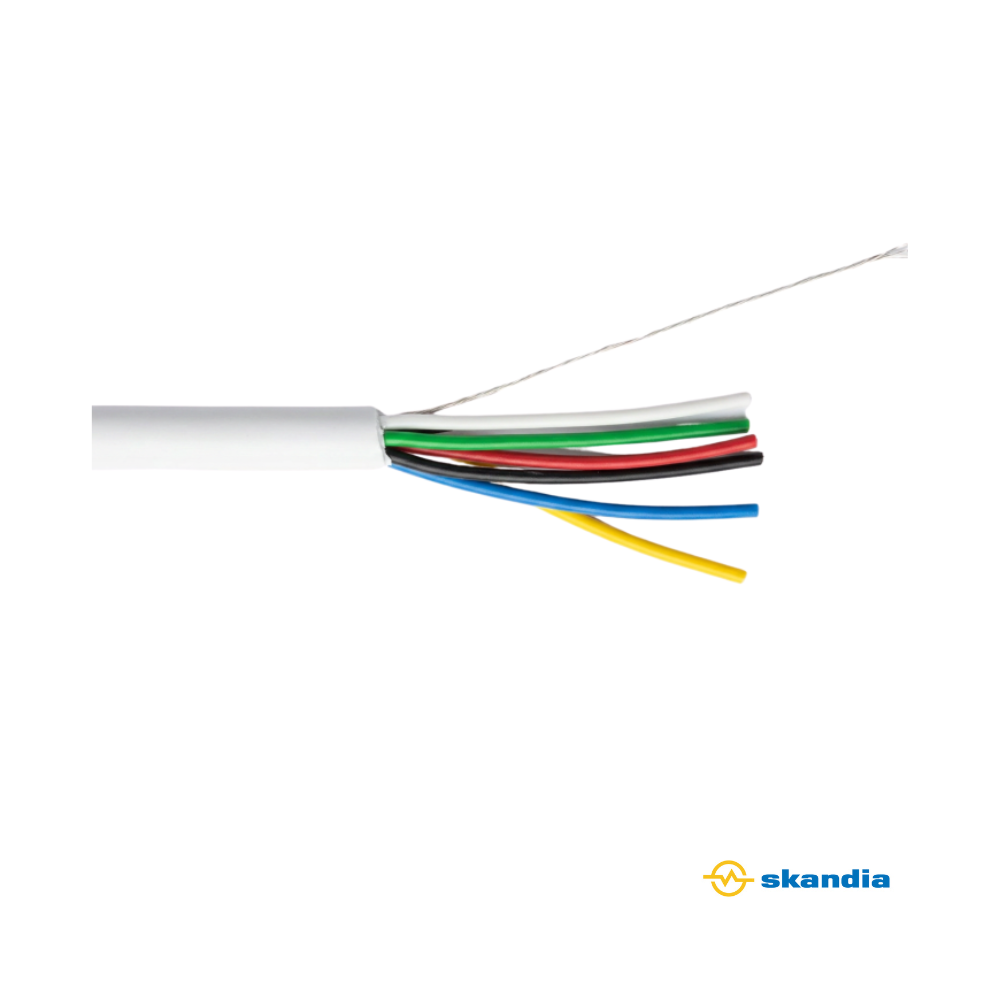

Security 6 Core 14x0.20mm Copper Strands 300m Cable Reel

75° White PVC INSULATION AND SHEATH

ACA N1155 (AUSTEL APPROVED)

Applications: Security Systems, Control and Communications Equipment, Access Control, Detection and Monitoring
Conductor: OXYGEN FREE Plain Copper Wire to AS/NZS 1125
Insulation: RoHS Compliant 75°C PVC to AS/NZS 3808
Core Colours: 6 Core: Red, Blue, White, Black, Green,Yellow
Sheath: RoHS Compliant 75°C PVC to AS/NZS 3808
Sheath Colours: White
Length: 300 Mtrs

Code

Cores

Conductor
No. / Dia
(mm)

Nominal
Area
(mm²)

AMP
Rating

Insulation
Thickness
(mm)

Sheath
Thickness
(mm)

Electrical
Resistance
at 20°C
(ohm/km)

Nominal
O.D.
(mm)

Mass
(kg/100m)

SC614020

6

14/0.2

0.4

2.8

0.3

0.5

44.8

5.5

5.2
