GDW-BV1109

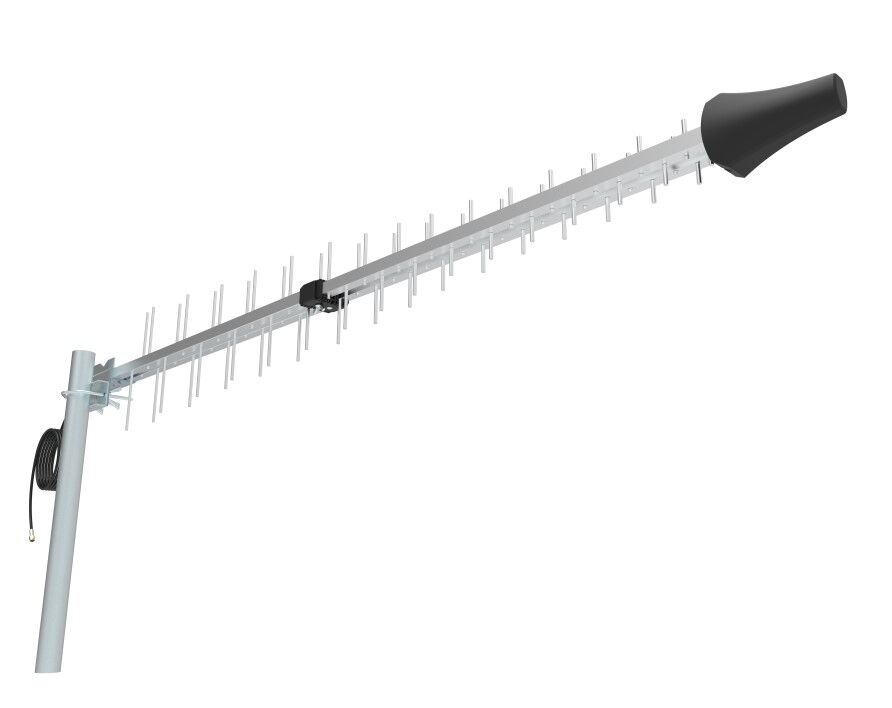

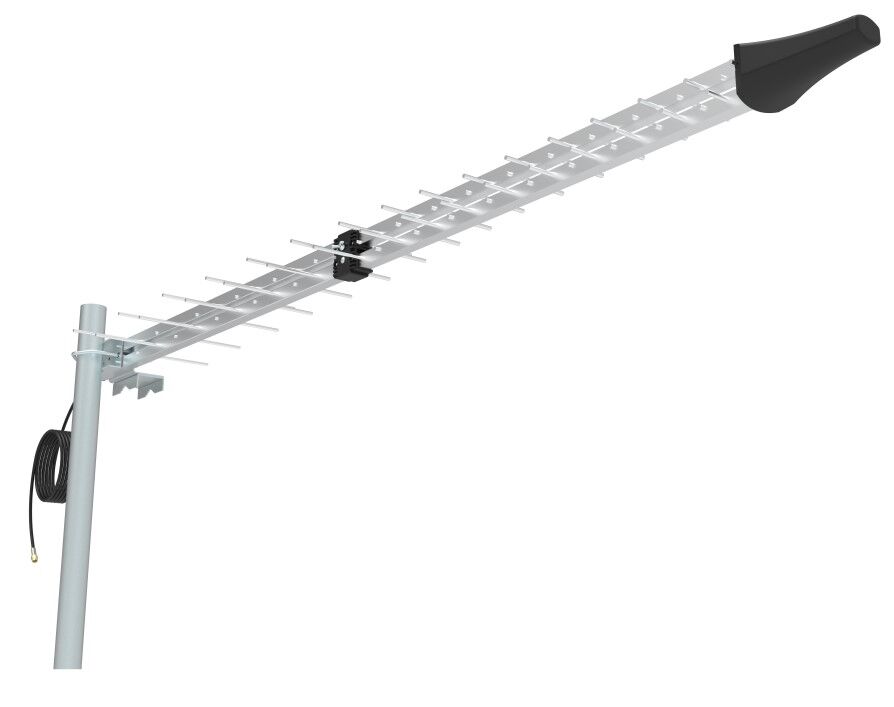

4G-5G LPDA Antenna 698-5000 MHz

Technical Data:

• Frequency Range: 698-960/1710-2700/3300-3800/4800-5000
• VSWR: <3
• Input Impedance: 50Ω
• Gain: 12-15dB
• Polarization: Vertical or Horizontal
• Horizontal Beam Width (3dB): 50+8/45+8/35+5/28+3°
• Vertical Beam Width (3dB):  40+5/35+5/35+3/20+3°
• Max. Power: 100w
• Connector Type: SMA-Male
• Lightning Protection: DC Ground
• Cable: 0.3m

Mechanical Specifications:

• Dimension: 1240x220x55mm
• Weight: 1.03kg
• Material: Aluminium
• Working Temperature: -40~+60°
