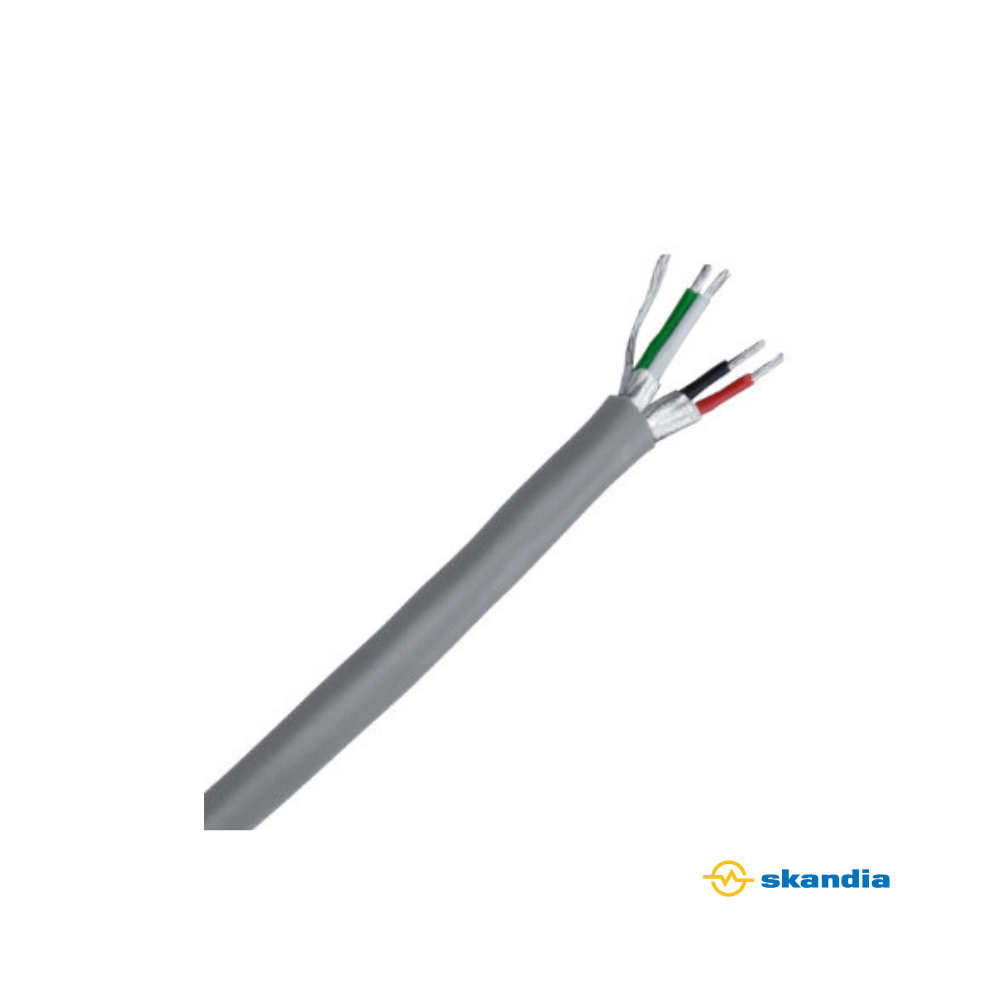

4 Core Shielded Security Cable 100MTR REEL
$132.00
Skip to product information
4 Core Shielded Security Cable 100MTR REEL
$132.00
2PR22AWG 2-pair 4-conductor shielded cable
2PAIR X stranded copper twisted pairs SHIELDED 22AWG
22AWG stranded (7 X 25) tinned copper conductors is equivalent to Belden 8723.
Individually shielded twisted pairs AL-PET shield to (115% coverage), 24AWG stranded tinned copper drain wire. CABLEMASTER multi-conductor cable for Audio control and instrumentation cable, deliver low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermo couples, solenoids, actuators, contactors, push buttons and alarms.
- Max. Conductor DC R <54.2
- Rated Temperature 80 (c)
- Rated Voltage (V) 300
- 20(degree)C nominal conductor DC resistance
CONDUCTOR
- Number of Pairs 2
- Total number of conductors 4 AWG 22 Stranding 7x0.25
- Conductor Material TC - Tinned Copper
- Available in 100mtr plastic reels
